High Power Long Range HD UHF Wireless Video Broadcast Transmitter Receiver for Video Surveillance and Security Monitoring

Name: High Power Long Range HD UHF Wireless Video Broadcast Transmitter Receiver for Video Surveillance and Security Monitoring
Brand: Kimpok
Price: 1 USD

Wholesale High Power Long Range HD UHF Wireless Video Broadcast Transmitter Receiver for Video Surveillance and Security Monitoring from china suppliers

Place of Origin : Guangdong, China

Brand Name : Kimpok

Model Number : KP-HDT5000

Price : Negotiation

Certification : CE

MOQ : 1 Piece

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Product name : Long Ragde Hd Uhf Wireless Video Broadcast Transmitter Receiver

Frequency : 300-900Mhz or other frequency customized

Modulation : COFDM

Consumption : <40W

Encryption : AES 128 bits

Constellation : QPSK(4QAM),16QAM,64QAM

FEC : 1/2 2/3 3/4 5/6 7/8

Guard Interval : 1/32 1/16 1/8 1/4

Carrier : 2K,8K

Bandwidth : 2/3/4/6/7/8MHz (option)

Contact Now

Product Description

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	2~5W adjustable
Video input	HDMI,CVBS,AHD,SDI (option)
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Transmission distance	100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	22015060mm
Weight	1362g
Box colour	Black
Antenna port	N type

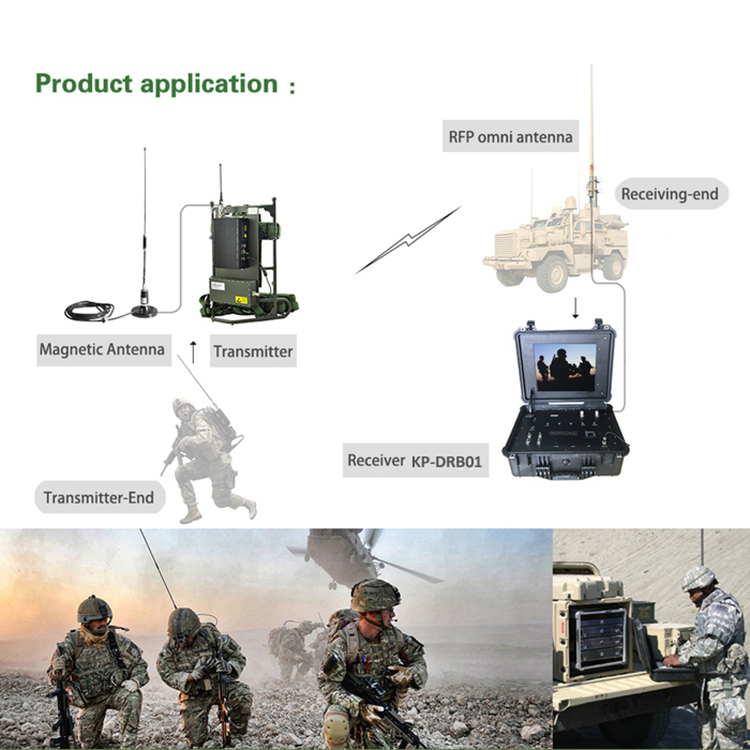

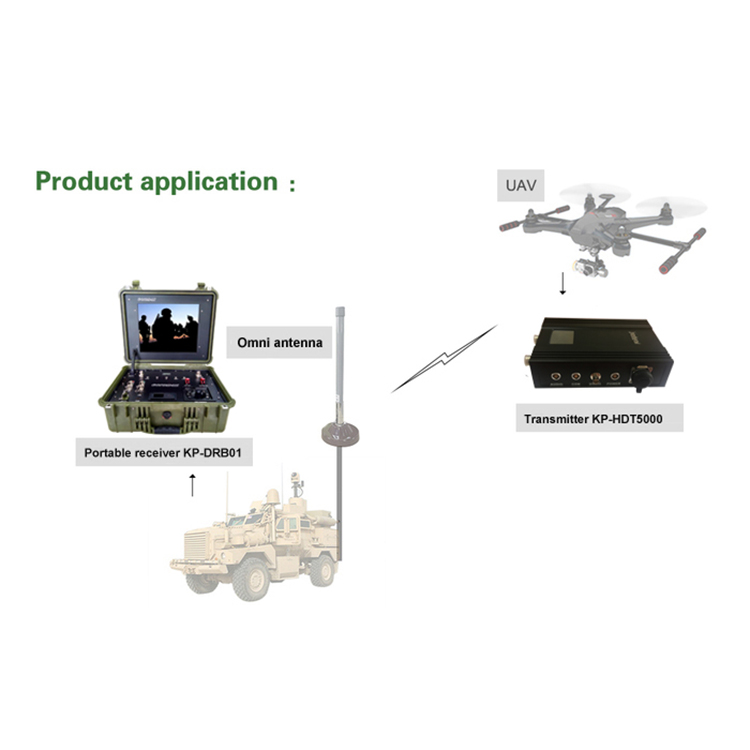

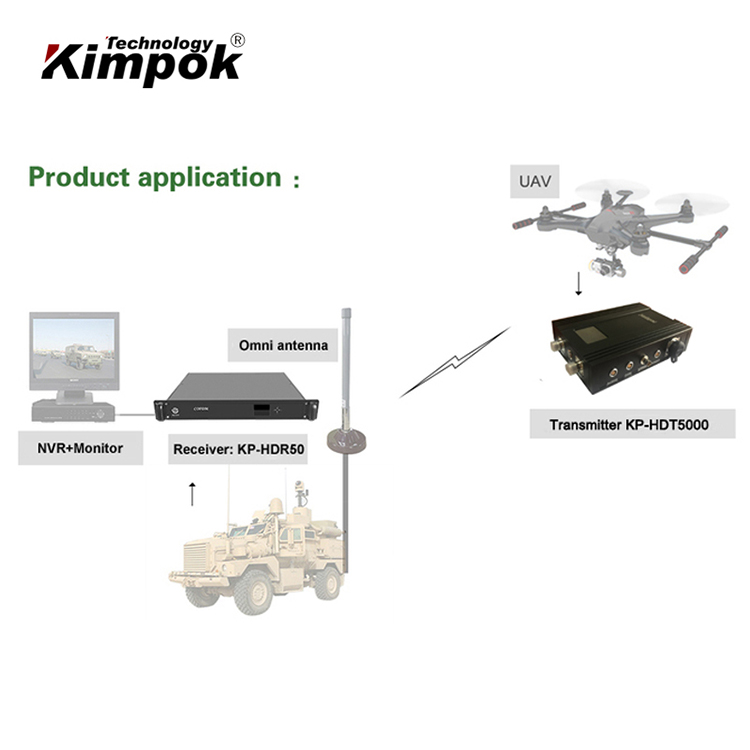

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency	300-900Mhz or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-4/H.264
Screen	4:3 16:9
Video resolution	1920*1080P/I@4Mhz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output; SDI
Working voltage	AC220V/DC12V <1A
Working Temperature	-20℃~+50℃
Dimension	48330044mm
Weight	1.5kg
