Brand Name : Kimpok
Model Number : KP-15VTX5W
Certification : CE
Place of Origin : China
MOQ : 1 piece
Price : Negotiation
Payment Terms : T/T,Western Union,paypal
Supply Ability : 5000 pieces/month
Delivery Time : Negotiation
Packaging Details : International standard packing
Type : Wireless Video Transmission
Channel : 8 Channels
Frequency : 1.5G(1505M-1680M)
System : FPV System
1.5G 5W VTX VRX 1505M-1680M Video Transmitter and Receiver High Power Image Transmission 1.5G VTX
Features:
Wireless transmission: no need to set up communications cable
Image, audio sync, color black and white compatible
Small size, light weight, easy to carry, good installation
Responsive, timely, send and receive real-time transmission
Using FM mode, anti-interference ability, good image quality
Highly integrated, stable and reliable transmission distance
DC power supply, easy to use.
Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and sepcial project.
VTX specification:
Product name | Analog video transmitter |
Voltage | Dc 24v |
Current | 1.3a |
Modulation | Fm |
Frequency | 1500mhz |
Channels | 8 channels |
Frequency band | 1505Mhz, 1530Mhz, 1555Mhz, 1580Mhz, 1605Mhz, 1630Mhz, 1655Mhz, 1680Mhz |
Transmit power | 5watt |
Video output | 1 vp-p (fm) |
Temperature | -10℃ ~ +50℃ |
Antenna port | Sma female |
Transmitter weight | 104g |
Dimensions | 98*55*18mm (without antenna) |
![]() |

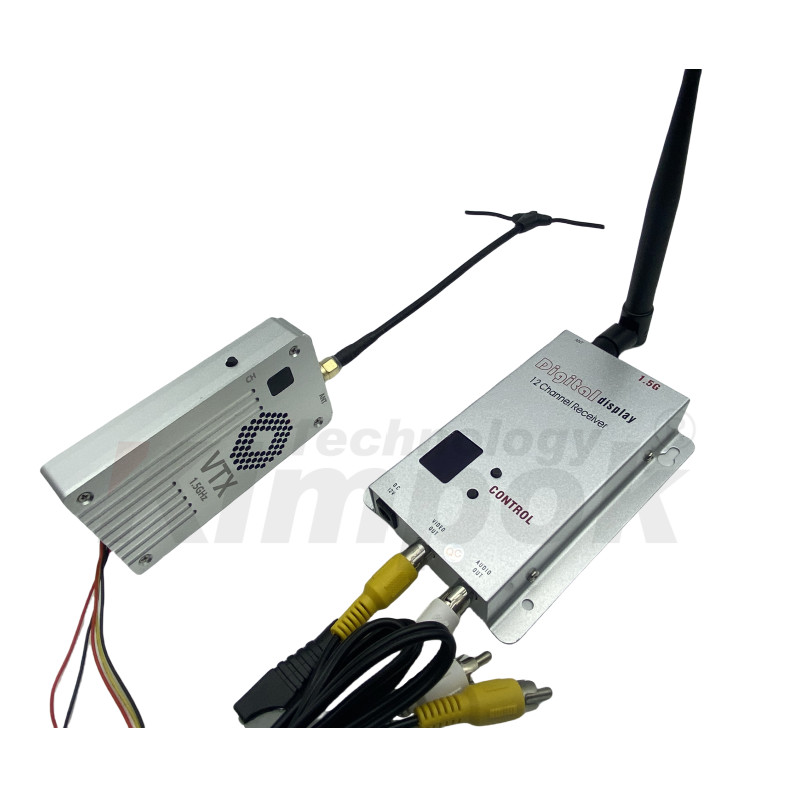

1.5G 5W VTX VRX 1505M-1680M Video Transmitter and Receiver High Power Image Transmission 1.5G VTX Images |
